OBDSTAR ODO Master Highlights:
1. The update cycle is short and fast
2. Free Update Online for One Year. After one year it will cost $119.4 per year (Subscription within 7 days of the expiration date or before expiration on your OBDSTAR devices, check OBDSTAR ODO Master Update Service)
Devices registered after March 1, 2024 will receive one month of free upgrades. Please contact us after registering the device to add a one-month upgrade for you.
3. Strong competitiveness and industry advantage
4. Some models can support 20/21 years of car (such as GM/Chrysler)
5. Multi-Language: English, Italian, Russian, German, Spanish, Polish, Portuguese, French (Default language is English, please pass us serial number to change)

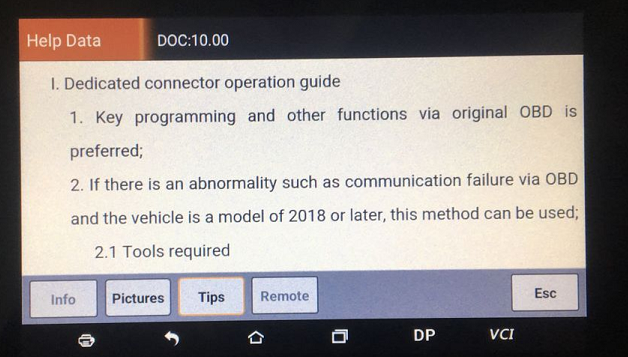

6. Add a new help function as shown below: (Applicable to some models, R & D information is being update)
7. If you also need Airbag Reset function, you can buy the authorization and adapter to get the same function as the OBDSTAR P50.

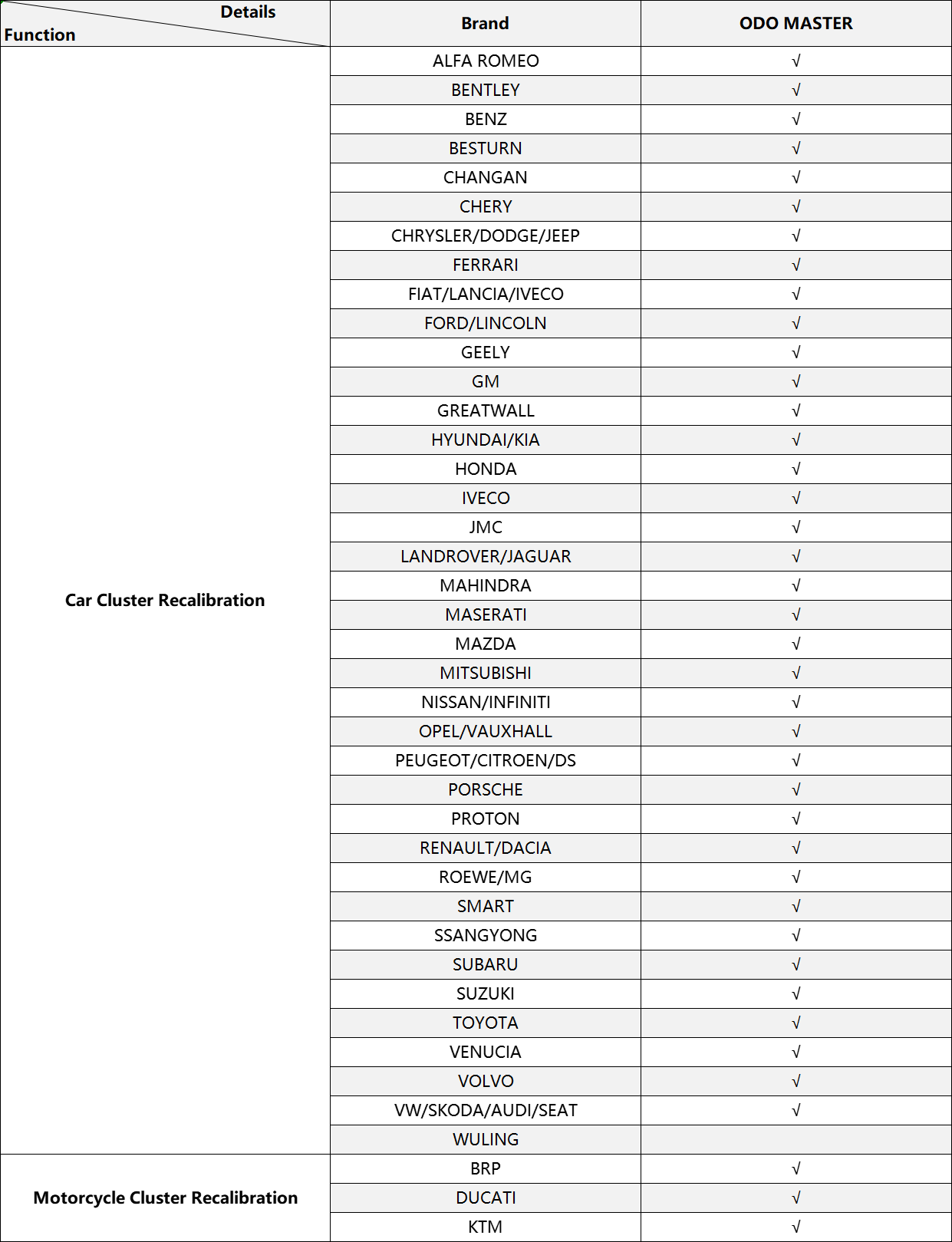

8. ODO Master Full Car List Please check the car list first.
Notice:
If you had an OBDSTAR device and registered before, when you register a new OBDSTAR machine, please change another email.
OBDSTAR ODO Master Functions List:
1. Via OBDII
2. Data Backup
3. Data Recovery
4. Read Odometer
5. Write Odometer
6. Odometer Reset
7. Oil Service Reset
8. Read & Clear DTC
9. One-Click Upgrade
10. Instruction Documents
11. Wide Vehicle Coverage
OBDSTAR ODO Master Support Car Software list:
1. Please check the car list first or send your car brand model year and the picture of the dashboard to sales@uobdii.com.
2. Do not work on BMW.
3. As for Mercedes Benz, there are many different dashboard models for the same chassis number, if the device says "not supported", then it measn this car's dashboard model is not supported, there is no solution for it.
4. As for 2018 and up FIAT/CHRYSLER/ALFA ROMEO vehicles, please work together with the FCA 12+8 adapter, otherwise, it won't work.
Europe:
ALFA ROMEO,AUDI,BENTLEY,BENZ,BMW/Mini,CITROEN,PEUGEOT,FERRARI,FLAT,JAGUAR,LANCIA,LAND ROVER,MASERATI,OPEL,PORSCHE,RENAULT,VOLVO,IVECO,SKODA,SEAT,VW
Japan:
ISUZU,MAZDA,MITSUBISHI,INFINITE,NISSAN,SUBARU,TOYOTA
Korea:
HYUNDAI,KIA,SANGYONG
America:
FORD/LINCOLN,CHRYSLER,GM
China:
GEELY,BESTURN,CHANGAN,ROEWE MG,ROEWE
OBDSTAR ODO Master New Car Models Coveraged Comparison with OBDSTAR X300M: | Car Models Coveraged | ODO Master | X300M |
| Ford | Fiesta | 2017- | 2013- |
| Focus | 2019 | 2013- |
| Transit | √ | × |
| KA | 2018- | 2005- |
| GM | Colorado | 2018- | 2010- |
| Cruze | 2017- | 2015- |
| Escalade | 2018- | / |
| XT6 | 2019 | |
| Yukon | 2017- | 2014- |
| Chrysler | Cherokee | 2018- | 2015 |
| RAM | 2018- | 2011- |
| Durango | 2018- | 2014- |
| Land Rover | Discovery 4 | 2015- | / |
| Range Rover Sport | 2017- | 2014 |
| VW | MQB 2012-2014.06 | √ | × |
| MQB 2014.06- | √ | √ |
| Renault | Captur | 2017- | / |
| Trafic IV | 2017- | / |
| KIA CEED | 24C16 | √ | √ |
| D70F3423 | √ | √ |
| D70F3XXX | √ | × |
| D70F3421 | √ | × |
| D70F35XX | √ | × |
| NEC | √ | × |
| NEC+24C16 | √ | × |
| KIA Optima | 24C16 | √ | √ |
| D70F3536 | √ | √ |
| D70F3421 | √ | × |
| D70F352X | √ | × |
| D70F35XX | √ | × |
| NEC | √ | × |
| NEC+24C16 | √ | × |
| Nissan | Altima 2013 | √ | √ |
| KICKS 2017- | √ | × |
| Mitsubishi | Outlander | √ | × |
| Triton 2015- | √ | × |
OBDSTAR ODO Master Hardware Comparison with OBDSTAR X300M:
OBDSTAR ODO Master Specifications: | Operation System | Android 5.1.1 |
| CPU | RK3128 Quad-Core ARM Cortex A7 1.2GHz |
| Battery | 2600mA, rechargeable polymer lithium battery |
| Extension Memory Card | 32G Micro SD (TF) card supported |
| Memory Capacity | 16GB |
| Storage Capacity | 32GB |
| LCD | 5.0 inch |
| LCD Resolution | 8000*600 |
| Touch Screen | Capacitive touch screen |
| Camera | 5 mega rear view camera |
| Wi-Fi | supported |
| Working Temperature | -20℃ ~ 55℃(14℉ ~ 131℉) |
| Storage Temperature | -20℃ ~ 70℃(-4℉ ~ 158℉) |
| Dimension | 140mm*89*mm*18mm |
| Weight | About 700g |
OBDSTAR ODO Master News:
SMART【Version:V40.94】 Add Read/Write FLASH and Mileage Calibration functions for SMART BR453 MONOCHROME 2014-
RENAULT 【Version:V41.11】 Add Read/Write flash,Milage Calibration functions for below models:
● RENAULT TWINGOIII TYPE 3(2021-EV MONOCHROME)
●RENAULT TWINGO ⅢITYPE4(2014-MONOCHROME)
HYUNDAl/KIA【Version:V41.40】 Add ECU Information,Mileage Calibration,Erase Dtc and Read/Write eeprom functions for KIA K32024-R7F701421.
TOYOTA CLUSTER RECALIBRATION UPGRADE[V40.33] Add support for IA5 FULL TFT Odometer Recalibration function
Add motorcycle cluster recalibration function on DUCATI and KTM ( all by OBD )
TOYOTA ODOMETER RECALIBRATION UPGRADE【V30.31】
CHRYSLER & DODGE & JEEP ODOMETER RECALIBRATION UPGRADE【V30.70】
OBDSTAR ODO Master Package includes:
1pc x OBDSTAR ODO Master Main Unit
1pc x Charger
1pc x Configuration List
1pc x Packing box
